SearchKit Maps Display

Implements a SearchKit display to put markers on a map using leaflet.js and OpenStreetMap.

The extension is licensed under AGPL-3.0.

Features

• Supports custom marker colours and icons (using fontawesome icons).
• Supports grouping (clustering) markers on zoom.
• Supports customisable popup.

Advanced features (requires additional configuration for Formbuilder)

• Supports "Click table/grid row to highlight on map".
• Supports "Filter table by visible map area".

Requires CiviCRM 6.16+. These features rely on core changes (civicrm-core#35330, civicrm-core#35331) - see info.xml's <compatibility> for the enforced minimum.

For this to work a table (or grid) display and a map display should be placed on the same form.

Filter table by visible map area

Add two range-filter fields named exactly geo_code_1 (latitude) and geo_code_2 (longitude) to the form - filterByBounds() looks them up by these names. See the demo form's <af-field> markup for the exact field configuration required.

Click table/grid row to highlight on map

CRM.searchkitmaps provides these functions:

• filterByBounds() - filters a table by bounds on the map if the table has Lat/Lon filters by range enabled (see above).
• highlightOnMap(id) - accepts an entity ID and highlights it on the map (opens the popup).
• addSearchDisplayTableClickToHighlightOnMap(displayName) - give it the name of a searchDisplay table and it will add a click-handler to each currently-rendered row which triggers highlightOnMap().
• addSearchDisplayGridClickToHighlightOnMap(displayName) - the same, but for a searchDisplay grid (each grid item gets the click-handler instead of each table row).
• addSearchDisplayLoadListener(tagName, displayName, onLoad) - registers onLoad(displayName) to run every time the named search display (re-)renders its results, eg. after a filter/sort/page change. tagName is crm-search-display-table or crm-search-display-grid. Use this to (re-)bind the click-handlers above to whichever rows/grid-items are currently on screen - re-binding is necessary because the search display replaces its rows/grid-items on every run.

For example, to highlight table rows on click:

CRM.searchkitmaps.addSearchDisplayLoadListener(
  'crm-search-display-table',
  'MySearch_Table_1',
  CRM.searchkitmaps.addSearchDisplayTableClickToHighlightOnMap
);

See the demo form (and search) for the full embedded javascript required to make this work: afsearchSearchkitMapsAndTableDemo

Installation

Learn more about installing CiviCRM extensions in the CiviCRM Sysadmin Guide.

Configuration

1. Create a new Search which contains Latitude/Longitude information (eg. Contacts with Addresses).
2. Add a display of type "Map".
3. Make sure that it selected the Latitude, Longitude fields correctly.

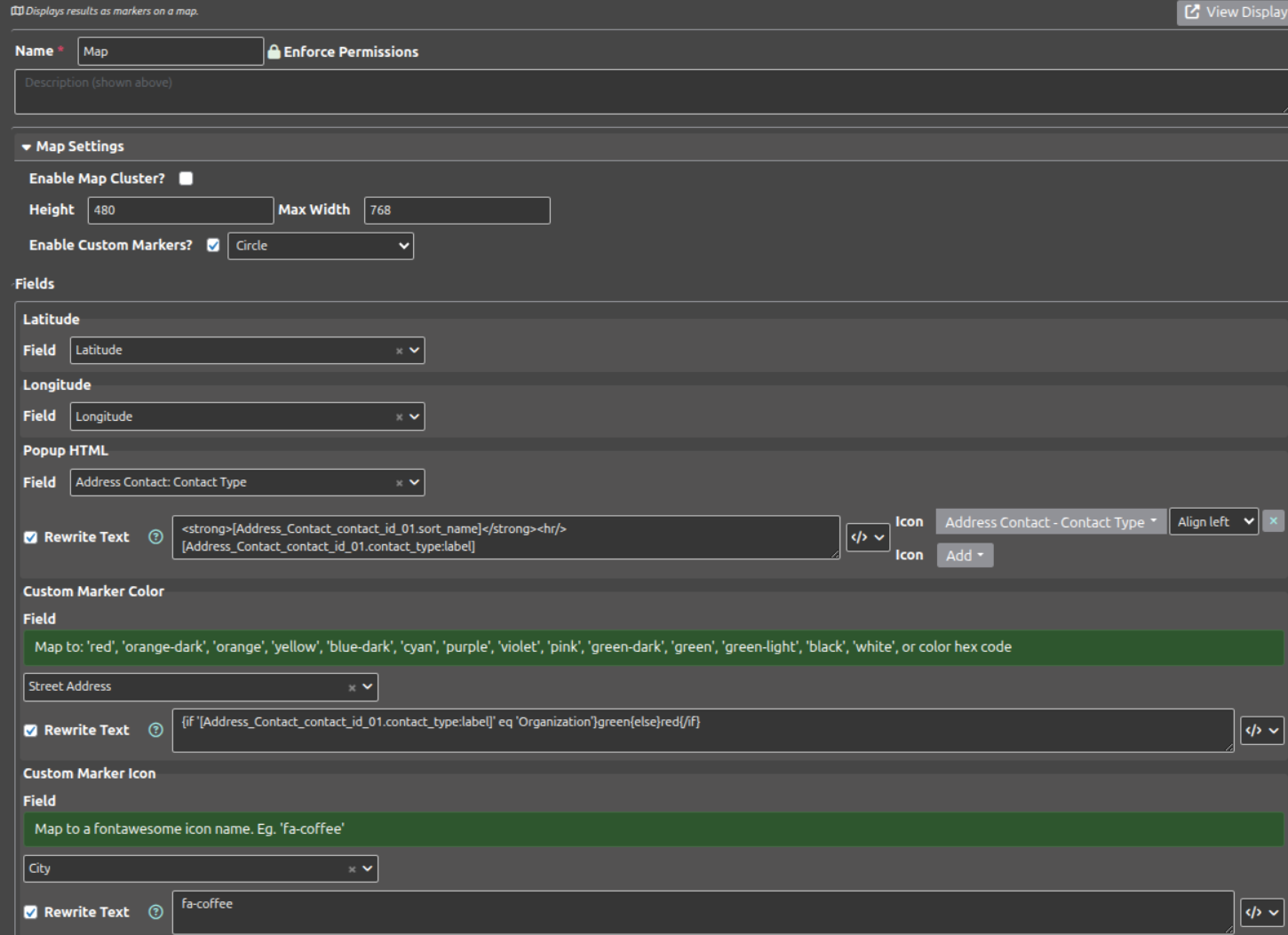

Popup

The "Popup" accepts HTML and can be populated from another field in the search display. By using rewrite and icons you can create rich content.

For example:

<strong>[Address_Contact_contact_id_01.sort_name]</strong>
<hr/>[Address_Contact_contact_id_01.contact_type:label]

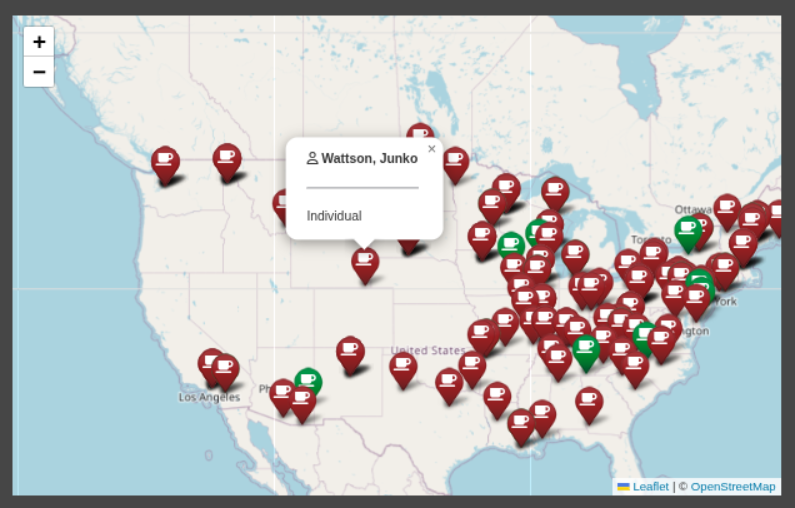

with icon = contact type gives you:

Custom markers

Enable "custom markers" in settings and choose your style (eg. Circle).

Select fields for "Custom Marker Colour" and "Custom Marker Icon".

Custom Marker Icon should map to a fontawesome icon name: eg. "fa-coffee". Use rewrite with smarty to select different icons for different data in the field.

Custom Marker Colour should map to a colour or hex code. For example:

{if '[Address_Contact_contact_id_01.contact_type:label]' eq 'Organization'}
green
{else}
red
{/if}

will set the marker to "green" for an Organization and "red" otherwise.

Roadmap

LeafletJS supports many features, multiple mapping providers, polygons etc.

It would be simple to add support for additional mapping providers (probably via a dropdown selector in the display configuration).

If your CiviCRM database has coordinates to map out polygons (eg. voter districts) then it could be extended to display those.

Support and Maintenance

This extension is supported and maintained with the help and support of the CiviCRM community by MJW.

We offer paid support and development as well as a troubleshooting/investigation service.
